Solar Cable / PV SOLAR CABLES
Solar Cable / PV Solar Cables
Applications
These cables are suitable for permanent outdoor long-term use, under variable and harsh climate conditions. They are designed and tested to operate at a normal maximum conductor temperature of 90°C and for 20,000 hours up to 120°C. Therefore, the expected period use is 30 years under normal usage conditions.
Solar Cable / PV Solar Cables
Applications
Deep Cable is a trusted manufacturer of Solar cables designed for efficient and reliable power transmission from solar modules. We focus on the durability and safety of solar cables so that they withstand harsh outdoor environments without developing any defects or faults. We have earned a reliable reputation as a solar cable manufacturer by providing high-performance solar cable to numerous clients in various sectors. As an IS:694,1990 certified company, we adhere to standard industry norms making us a reliable company for solar cable.
Key Highlights of Solar Cable
We engineer our solar cable for photovoltaic (PV) power supply systems with a nominal D.C. voltage of 1.5kV. They are essential carriers of power between solar panels, inverters and battery storage units. Whether needed for fixed installation or flexible setups like rooftop solar arrays, ground-mounted systems, and architecturally integrated PV solutions. Made with robust quality materials and pure conductors, these can withstand extreme weather conditions, mechanical stress, and long-term outdoor exposure.
We use highly conductive electrolytic tinned copper conductors to reduce power loss during the transmission of energy. We ensure maximum safety and long-term durability as we use insulation and outer sheaths made of cross-linked, halogen-free, and flame-retardant materials, offering superior resistance to fire, UV rays, ozone exposure, and chemical degradation.
Performing efficiently under harsh temperature conditions, our solar cables can operate continuously even at 90°C and are tested to endure up to 120°C for 20,000 hours, extending their lifespan to approximately 30 years under normal working conditions. Here are key properties of our solar cable that make it the preferred choice for our customers:
- UV and Ozone Resistance
- Fire-Resistant Properties
- Chemical and Oil Resistance
- High Mechanical Strength and flexible installations.
- Optimal Electrical Performance
Applications
Our solar cables are engineered to perform reliably in demanding environments, making them suitable for a wide range of applications, including:
- Rooftop Solar Installations
- Utility-Scale Solar Farms
- Architectural Solar Systems
- Off-Grid Solar Solutions
- Floating Solar Panels
- Hybrid Renewable Energy Systems
Mobile and Emergency Solar Setups
Why Choose Us for Solar Cables?
At Deep Cable, we use high-grade materials to enhance durability and quality. With a focus on excellent performance, and safety in our solar cable manufacturing process. Our cables comply with international standards such as 2 Pfg 1169/08.2007 and EN 50618, ensuring that they meet the highest industry benchmarks. Following a customer-centric approach we design our cables to be easy to install, cost-effective, and highly durable. Deep Cable is the preferred choice for solar power professionals, engineers, and system integrators. By choosing us, you invest in a trusted solar cable solution that guarantees long-lasting performance, superior safety, and maximum energy efficiency.
Contact our team today to learn more about our solar cables and find the perfect fit for your solar power project.
Standards

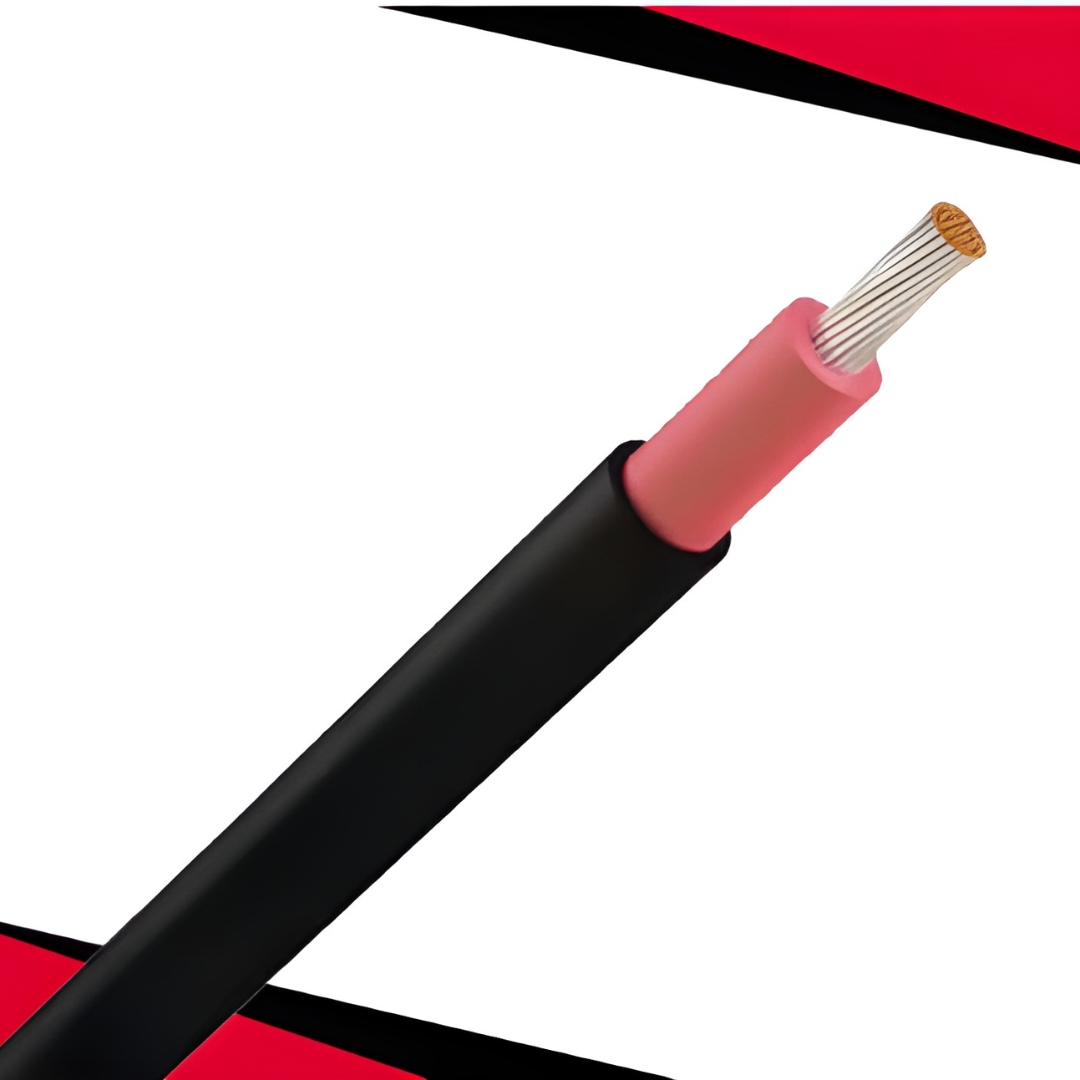

Design
Conductor – Flexible Electrolytic Tinned fine copper strands, acc. To IEC 60228, class 5
Insulation – Crosslinked Halogen Free & Flame Retardant Insulation , Colour : White , Red Or Black
Outer Sheath – Crosslinked Halogen Free & Flame Retardant UV and ozone resistant Sheath in Black Or Black with Red Stri
Electrical Properties
Rated DC Voltage: 1.5 kV
Insulation – Crosslinked Halogen Free & Flame Retardant Insulation , Colour : White , Red Or Black
Outer Sheath – Crosslinked Halogen Free & Flame Retardant UV and ozone resistant Sheath in Black Or Black with Red Stri
Thermal Characteristics
Ambient Temperature: -40°C ~ +90°C
Maximum Temperature at Conductor: 120°C (20000h)
Short Circuit Temperature: 200°C (at conductor max. 5sec)
Thermal Endurance Test : According to EN 60216-2 (temperature index +120°C)
Chemical Characteristics
Mineral Oil Resistance: according to EN 60811-2-1
Ozone Resistance: according to EN 50396 part 8.1.3 Method B
Very good resistance to oil and chemicals
Acid & Alkaline Resistance: According to EN 60811-2-1 (Oxal acid and sodium hydroxide)
Weathering-UV Resistance
Resistance to fire
Mechanical Characteristics
Minimum Bending Radius : 6 x OD (fixed), 15 x OD (occasional flexing)
Dynamic Penetration: According to requirement of Cables for PV systems
Tensile Strength: 6.5 N/mm2 for insulation and 8 N/mm2 for sheathing – according to EN60811
Elongation of Insulation and sheathing: 125% – according to EN60811
Shrinkage : 2% at 120°C according to EN 60811-1-3
Product & Ratings
| Sr. No. | No. cores x Cross-sec mm² | Outer Dia approx. mm | Current Carrying Capacity @ Amb. 60 Deg.C | Conductor Resistance | Approx Cable Weight | ||||
|---|---|---|---|---|---|---|---|---|---|
| Single Cable in Air (Amps) | Single Cable On Surface (Amps) | Two loaded cables touching, on a surface (Amps) | (Max) Ω / km at 20°C | Kg/Km | |||||
| 2 Pfg 1169/08.2007 – PV-F | |||||||||
| 1 | 1 | x | 1.5 | 4.0 | 30 | 29 | 24 | 13.70 | 29 |
| 2 | 1 | x | 2.5 | 4.4 | 41 | 39 | 33 | 8.21 | 40 |
| 3 | 1 | x | 4 | 5.0 | 55 | 52 | 44 | 5.09 | 54 |
| 4 | 1 | x | 6 | 5.6 | 70 | 67 | 57 | 3.39 | 74 |
| 5 | 1 | x | 10 | 6.5 | 98 | 93 | 79 | 1.95 | 117 |
| 6 | 1 | x | 16 | 7.6 | 132 | 125 | 107 | 1.24 | 173 |
| BS EN 50618 – H1Z2Z2-K | |||||||||
| 1 | 1 | x | 1.5 | 4.9 | 30 | 29 | 24 | 13.7 | 39 |
| 2 | 1 | x | 2.5 | 5.3 | 41 | 39 | 33 | 8.21 | 51 |
| 3 | 1 | x | 4 | 5.9 | 55 | 52 | 44 | 5.09 | 65 |
| 4 | 1 | x | 6 | 6.5 | 70 | 67 | 57 | 3.39 | 87 |
| 5 | 1 | x | 10 | 7.4 | 98 | 93 | 79 | 1.95 | 132 |
| 6 | 1 | x | 16 | 8.8 | 132 | 125 | 107 | 1.24 | 198 |
| 7 | 1 | x | 25 | 10.5 | 176 | 167 | 142 | 0.795 | 301 |
| 8 | 1 | x | 35 | 12.0 | 218 | 207 | 176 | 0.565 | 405 |
| 9 | 1 | x | 50 | 14.0 | 276 | 262 | 221 | 0.393 | 567 |
| 10 | 1 | x | 70 | 16.0 | 347 | 330 | 278 | 0.277 | 766 |
| 11 | 1 | x | 95 | 17.8 | 416 | 395 | 333 | 0.210 | 1,008 |
| 12 | 1 | x | 120 | 19.7 | 488 | 464 | 390 | 0.164 | 1,253 |
| 13 | 1 | x | 150 | 22.0 | 566 | 538 | 453 | 0.132 | 1,563 |
| 14 | 1 | x | 185 | 24.5 | 644 | 612 | 515 | 0.108 | 1,940 |
| 15 | 1 | x | 240 | 27.5 | 775 | 736 | 620 | 0.082 | 2,481 |
** Higher sizes are also available upon request
| Ambient temperature °C | up to 60 | 70 | 80 | 90 |
|---|---|---|---|---|
| Conversion factor | 1 | 0.92 | 0.84 | 0.75 |
