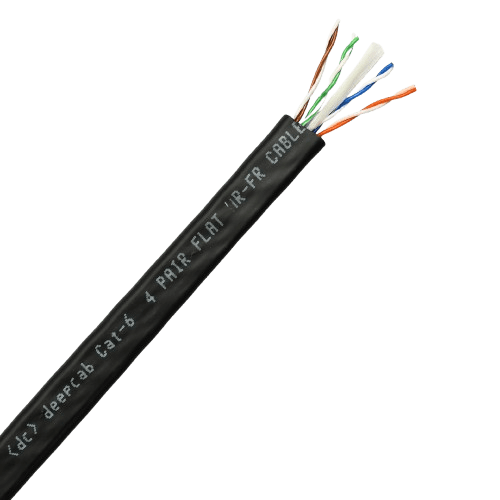

CAT 6 LAN Cable
Features
- Excellent transmission over twisted pairs
- Central separator spline reduces crosstalk for improved data integrity.
- Supports gigabit ethernet speeds for seamless, lag-free connectivity
Applications
- Networking - Modems, Switches, Routers, Servers & other network equipments
- Data Centers and Building backbones - Data transmission and reliable inter-floor connectivity
- Powers smart home technologies and multimedia applications, facilitating seamless wireless coverage and high-definition audio-video streaming
Construction
- Solid (generally) / Fine conductor strands of ABC - Annealed Bare Copper
- 2 / 4 (generally) twisted pairs of high quality Polyethylene based insulation separated with a spline
- Sheathing of PVC (generally) / Polyethylene based compund
Technical Specification
Mutual Capacitance :
C/C Max 5.1 nf/100m
Capacitance Unbalance (Pr – Gr) :
Max 330 pF/100m
Insulation Resistance :
> 500 MOhm/100m
DC resistance :
9.3 Ohm/100m
In Accordance to :
ISO/IEC 11801, ANSI/TIA-568
Core Identification :
| Wire 1 | Wire 2 | |
|---|---|---|
| Pair 1 | White - Orange Stripe | Orange |
| Pair 2 | White - Green Stripe | Green |
| Pair 3 | White - Blue Stripe | Blue |
| Pair 4 | White - Brown Stripe | Brown |
Dielectric Strength :
1/1 DC kV/min
Rated voltage:
300 V RMS
Attenuation :
5.3 dB/100m @ 8 MHz
CAT 6 - UTP Indoor Cable
- Outer sheathing of special PVC compound
CAT 6 - UTP Outdoor Cable
- Outer sheathing of LDPE to provide ruggedness for exterior usecase
CAT 6 - UTP Outdoor Cable
- Outer sheathing of special PVC compound
- Alloy braiding (jelly filled) with Aluminium tape & ATC drain
| Item\Properties | ATC Drain | Overall | Individual Pair | ||
|---|---|---|---|---|---|
| Braiding | Foiling | Braiding | Foiling | ||
| U / UTP | |||||
| F / UTP | |||||
| S / UTP | |||||
| F / FTP | |||||
| S / FTP | |||||
| S / FTP | |||||
| SF / UTP | |||||
| SF / FTP | |||||
| SF / SFTP | |||||
- The number and diameter of conductor strands are for reference only.
- The above data is only indicative and may be revised without prior intimation.
